Savaria Omega Inclined Platform Lift

Savaria-Logo

The Savaria Omega is a custom inclined platform lift for stairs with curves, landings, or multiple levels. Space-saving, low-construction, and ADA-compliant options available.

Get a Free Quote
  • Payment Options: ACH, Cash, Credit Card (3% Service Fee), Debit Card & Financing Options Available
Inclined Platform Lift
Model : Omega

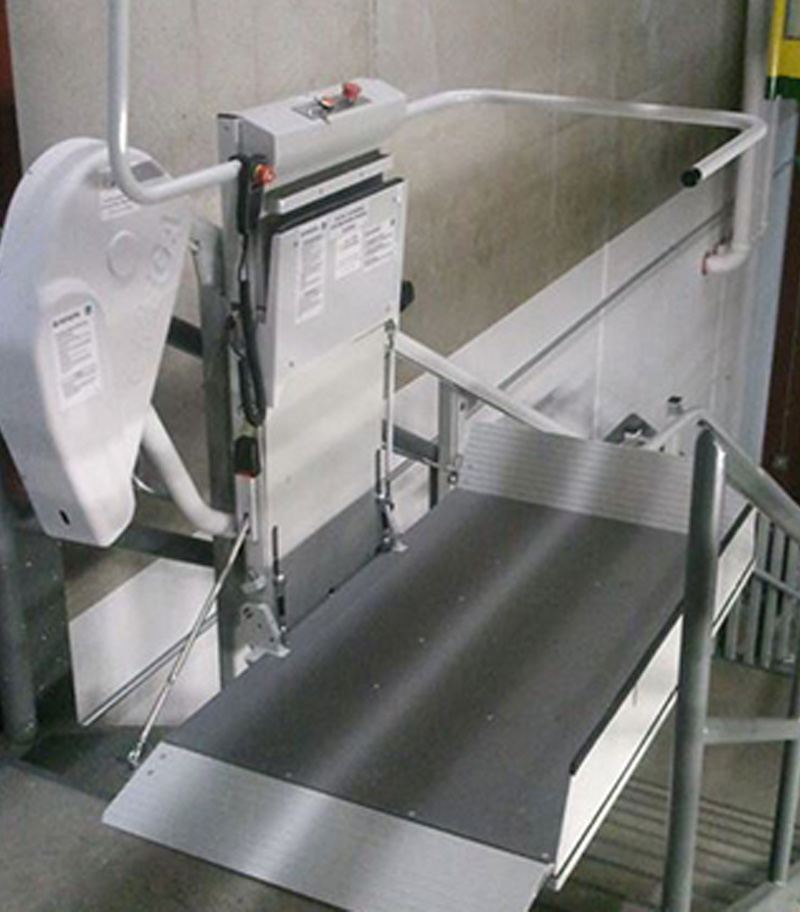

The Savaria Omega Inclined Platform Lift is the perfect solution for navigating stairs with curves, landings, or multiple levels. Ideal for both residential and commercial use, it carries a wheelchair user along a custom rail system mounted to the wall or stair structure. Unlike elevators or vertical lifts, the Omega requires minimal construction and features a foldaway platform to keep stairs unobstructed. It accommodates complex layouts including spiral staircases and curved designs, and is available with an ADA-compliant platform featuring a fold-out seat and audiovisual alerts for public access.

Affordable accessibility option:

Provides access without significant renovations.

Space-saving design:

Sleekly finished traveling rails and foldaway design.

Machine roomless:

The drive system is housed with the lift, so no additional machine room is needed.

Battery powered/charging stations:

Battery-operated unit ensures the lift operates through a power failure. Charging stations at the top and bottom ensure the lift is always ready to go.

Other standard features:

Constant pressure buttons to move the lift up and down, motor housed on board the lift, modular rail system, manual folding platform, pendant control, keyed call stations, keyed operation.

Standard finish options:

Light gray (RAL 7035).

ADA-compliant platform:

Optional ADA-compliant platform, ideal for public accessibility requirements.

Safety features:

Obstruction sensor system on the platform, non-skid platform with side safety flaps, overspeed governor, manual lowering device, keyed access for call stations and emergency stop button.

Options

Optional configurations: Straight through or side exit (90 degrees) ramp
Platform sizes:
W26.5″ x L36″ (673 mm x 914 mm)
W30.5″ x L49.25″ (775 mm x 1250 mm)
W28.35″ x L35.43″ (720 mm x 900 mm)
W28.5″ x L44″ (724 mm x 1118 mm)
Other options: Motorized folding/unfolding of platform and safety arms, fold-down seat with 330 lb (150 kg) capacity, and stainless steel rail (required for outdoor applications)
Commercial package: Includes power folding arms and platform, additional battery pack, audio visual alert, folding seat, ADA-compliant platform

Specifications

Applications: Commercial, residential, indoor, outdoor*
Stair types: Straight, single flight with constant gradient
Capacity: 550 lb (250 kg)
Optional capacity: 660 lb (300 kg) USA only
Nominal speed: 15 feet/minute (0.075 metres/second) to 20 feet/minute (0.1 metres/second)**
Minimum travel: 8″ (20 cm)
Maximum travel: 80′ (24 m)
Motor: 0.66 hp (0.5 kW)
Gradient: Constant, 20º to 45º
Power supply: 24 volts DC (battery system), 120V AC for charger
* For outdoor applications, consult your local Savaria dealer as not all climates may be suitable for outdoor installations
** Note that the speed may vary depending on the angle of the stairs

Downloads
Savaria Omega Brochure
Savaria Omega Planning Guide
Savaria Omega Owner’s Manual

Have Questions?

Need help choosing or installing an Inclined Platform Lift? Our experts are ready to assist!
Contact Us
Inclined Platform Lift

Freqently Asked Questions

What types of staircases can the Omega lift be installed on?
The Omega is designed for stairs with curves, intermediate landings, multiple levels, and even spiral staircases. Each unit is custom-built to fit your specific staircase layout.
Is the Omega lift suitable for commercial buildings?
Yes, the Omega offers an ADA-compliant platform with features like a fold-out seat and audiovisual movement alarm, making it ideal for public and commercial spaces.
Does the Omega lift require major construction?
No, the Omega requires minimal construction. Its rail system mounts alongside the stairs, making it a practical alternative to an elevator.
Can the platform be folded when not in use?

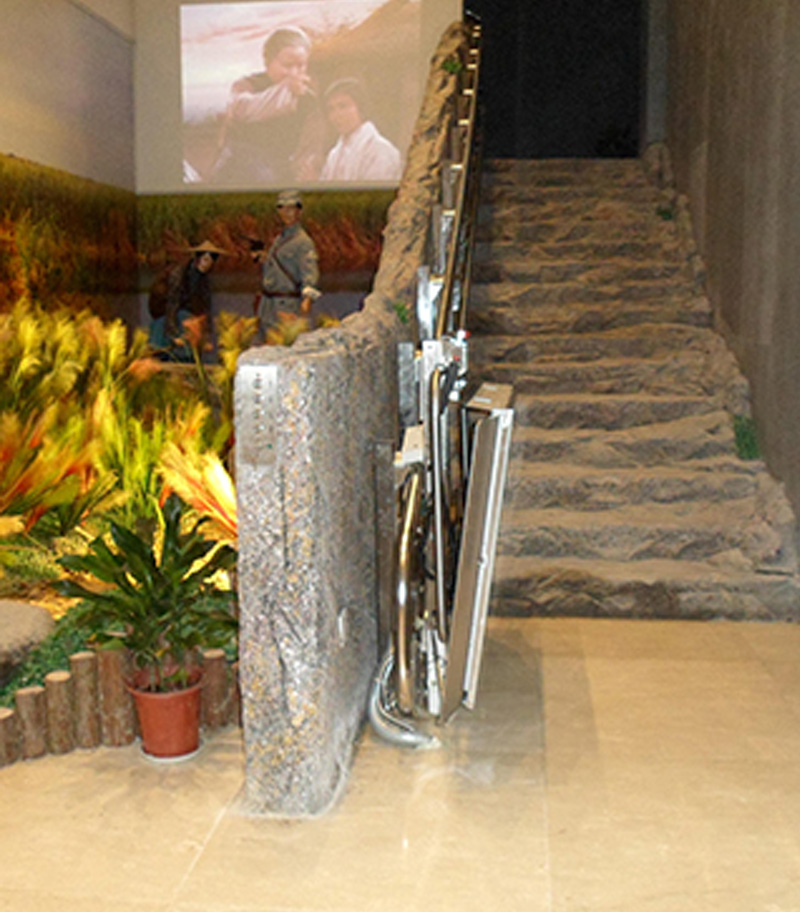

Yes, the platform folds away neatly to keep the stairs accessible for others when the lift is not in operation.
Is the Savaria Omega lift suitable for outdoor use?
Yes, the Omega can be installed outdoors, provided the environment is appropriate and protective measures are in place for weather resistance.
