Savaria Delta Inclined Platform Lift
The Savaria Delta Inclined Platform Lift provides safe stair access for wheelchair users or seated passengers. Foldable, battery-powered, and ADA-compliant options available—ideal for indoor or moderate outdoor use.
- Payment Options: ACH, Cash, Credit Card (3% Service Fee), Debit Card & Financing Options Available
Inclined Platform Lift
Model : Delta

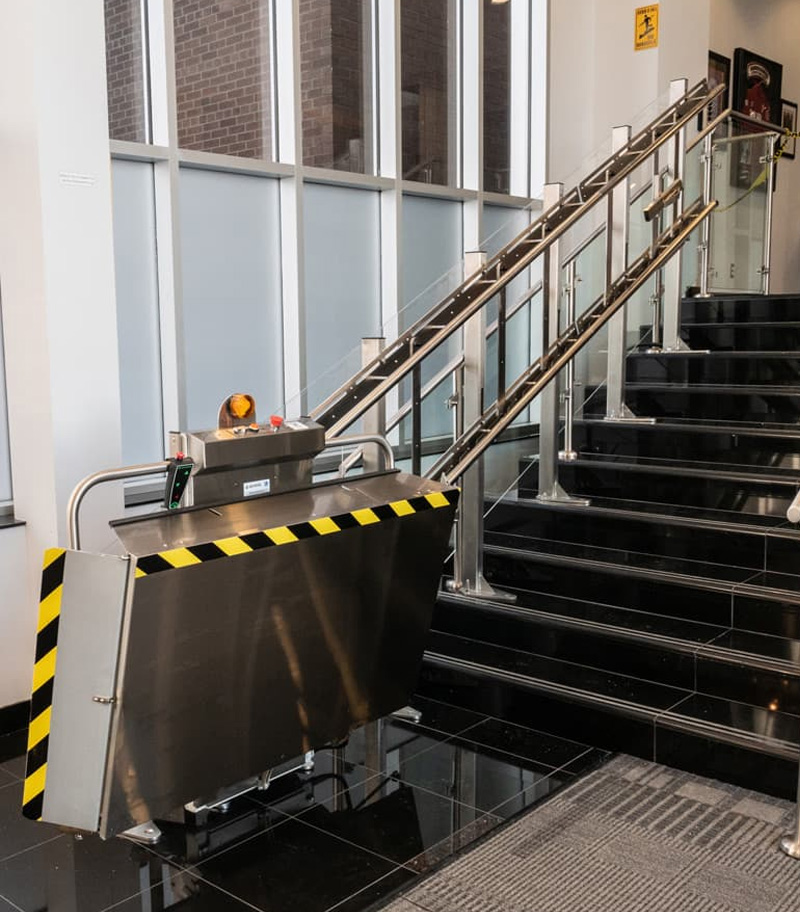

The Savaria Delta Inclined Platform Lift offers safe and reliable access over a single flight of stairs in residential or commercial spaces. Designed to carry a wheelchair user or seated passenger, it supports up to 550 lbs. The fold-up platform keeps stairs accessible when not in use, and four platform sizes—including ADA-compliant options—accommodate a range of needs. Powered by an onboard battery-driven motor, the Delta lift requires no machine room and operates even during power outages. Suitable for indoor or moderate outdoor environments.
Affordable accessibility option:
Provides access without significant renovations.
Space-saving design:
Sleekly finished traveling rails and foldaway design.
Machine roomless:
The drive system is housed with the lift, so no additional machine room is needed.
Battery powered/charging stations:
Battery-operated unit ensures the lift operates through a power failure. Charging stations at the top and bottom ensure the lift is always ready to go.
Other standard features:
Constant pressure buttons to move the lift up and down, motor housed on board the lift, modular rail system, manual folding platform, pendant control, keyed call stations, keyed operation.
Standard finish options:
Light gray (RAL 7035).
ADA-compliant platform:
Optional ADA-compliant platform, ideal for public accessibility requirements.
Safety features:
Obstruction sensor system on the platform, non-skid platform with side safety flaps, overspeed governor, manual lowering device, keyed access for call stations and emergency stop button.
Options
Optional configurations: Straight through or side exit (90 degrees) ramp
Platform sizes:
W26.5″ x L36″ (673 mm x 914 mm)
W30.5″ x L49.25″ (775 mm x 1250 mm)
W28.35″ x L35.43″ (720 mm x 900 mm)
W28.5″ x L44″ (724 mm x 1118 mm)
Other options: Motorized folding/unfolding of platform and safety arms, fold-down seat with 330 lb (150 kg) capacity, and stainless steel rail (required for outdoor applications)
Commercial package: Includes power folding arms and platform, additional battery pack, audio visual alert, folding seat, ADA-compliant platform
Specifications
Applications: Commercial, residential, indoor, outdoor*
Stair types: Straight, single flight with constant gradient
Capacity: 550 lb (250 kg)
Optional capacity: 660 lb (300 kg) USA only
Nominal speed: 15 feet/minute (0.075 metres/second) to 20 feet/minute (0.1 metres/second)**
Minimum travel: 8″ (20 cm)
Maximum travel: 80′ (24 m)
Motor: 0.66 hp (0.5 kW)
Gradient: Constant, 20º to 45º
Power supply: 24 volts DC (battery system), 120V AC for charger
* For outdoor applications, consult your local Savaria dealer as not all climates may be suitable for outdoor installations
** Note that the speed may vary depending on the angle of the stairs
